Products · Lightweight

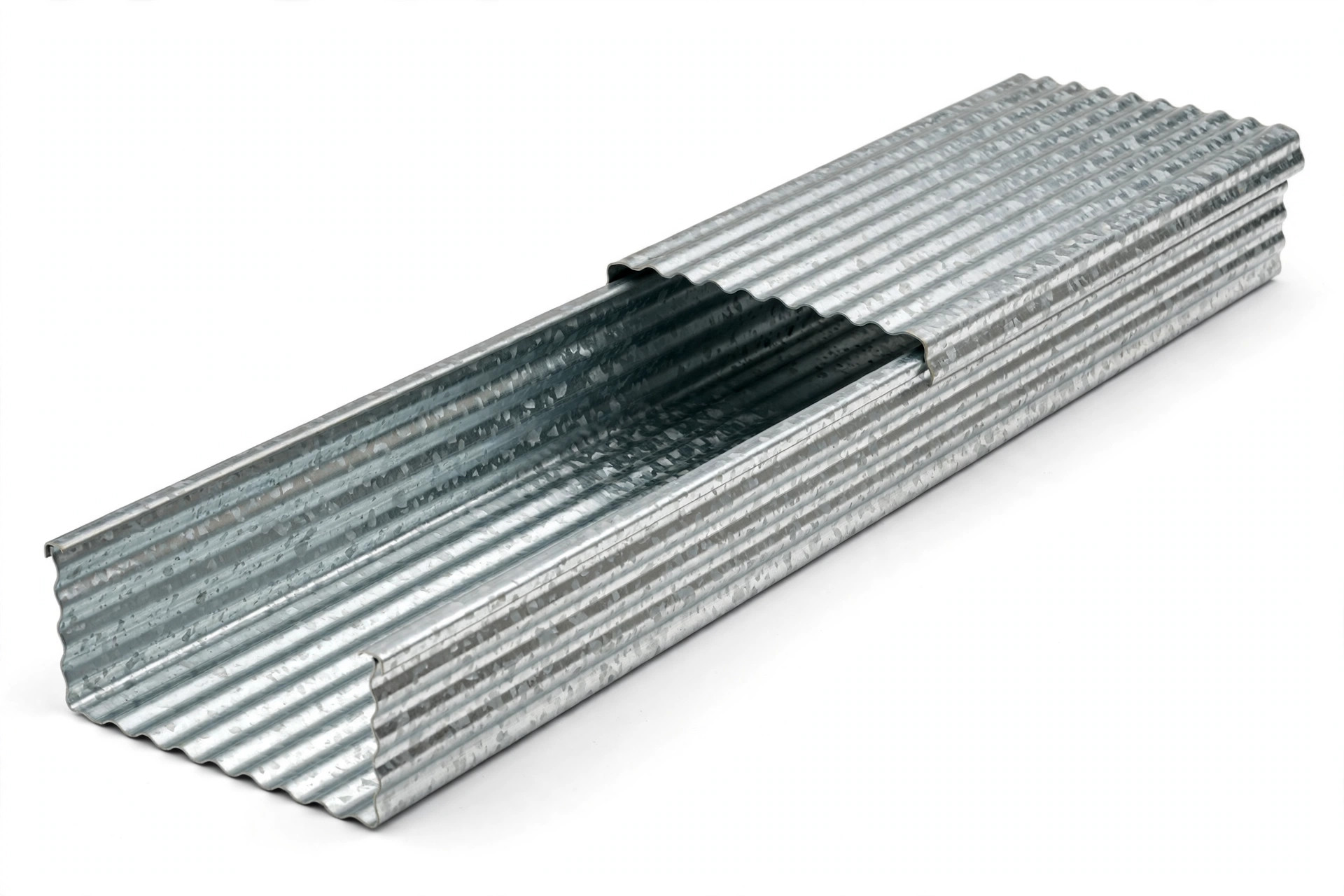

Corrugated Cable Tray
A formed-rib trough: ribs formed into the trough stiffen the structure while reducing material use — a lightweight structural design with a reinforced trough profile, for factory routes. The catalog lists no numeric specification table for corrugated tray — thickness and load performance depend on the selected design and support span, and are confirmed with your quotation.
Configure your variant
Pick a style, material and finish — the matching model rows highlight below, and your selection is written into the inquiry form at the bottom of the page (you can still edit it there).
Why buyers specify it
- Formed ribs stiffen the trough structure while reducing material use — the catalog description of corrugated tray
- Lightweight structural design with a reinforced trough profile
- For your inquiry, state: tray design, width, height, thickness and section length, plus coating finish, load requirement, support span and quantity
- No numeric size or load table is published for corrugated tray — nothing on this page invents one
Specifications
| Construction | Formed-rib (corrugated) trough — ribs stiffen the structure, less material used |
|---|---|
| Key features | Lightweight structural design · reinforced trough profile |
| Use it where | Factories |
| Thickness & load | Depend on the selected design and support span — confirmed with your quotation |
| Coating finish | Confirmed with your quotation (coating finish is an inquiry item for this range) |
Ranges from the Hongfeng product catalog parameter tables. Exact model tables (SWL / weight per size) are sent with your quotation.
Model table
No numeric model table is published for corrugated tray: the catalog (16-page edition, lightweight & corrugated range) describes the formed-rib design, lightweight structure and factory application only, and no size, thickness or load figures. Thickness and load performance depend on the selected design and support span, and are confirmed with your quotation.
Load & installation conditions
Corrugated tray is not sized off the steel L / P / T tables: thickness and load performance depend on the selected design and support span. Send tray design, width, height, thickness, section length, coating finish, load requirement and support span, and the quotation will state the section proposed.
Custom & supply
Corrugated tray is produced to the design and span in your inquiry, and shipped with the fittings confirmed in the quotation.
Corrugated-tray fittings
Fittings for corrugated runs are confirmed with your quotation, together with the tray design and span — the catalog publishes no separate corrugated fittings table. In the inquiry form, select “Other / Multiple Products” — your corrugated selection is written into the message as the Variant line.
Where it is used
Factory general routes
Catalog typical application — general factory cable routing.
Factory routes needing lightweight structure
Formed ribs strengthen the trough while reducing material use.
Longer-span factory straight runs
Thickness and load performance depend on the selected design and support span — the span is part of the inquiry.
Lightweight-series factory indoor routes
Corrugated tray shares the catalog lightweight range with color-coated steel, for factory indoor routing.
Frequently asked questions
What do the corrugations do?
Formed ribs stiffen the trough structure while reducing material use — the catalog description.
Which thickness and load apply?
They depend on the selected design and support span, and are confirmed with your quotation.
Which coating finishes are available?
Coating finish is an inquiry item for this range and is confirmed with your quotation.
What about MOQ and lead time?
Both are confirmed with your quotation.
